Advanced Tool Holding for Demanding Machining Applications #
Product Overview #
The SMG Non-Pullout Milling Chuck is designed to provide a secure and reliable clamping solution, especially suited for machining challenging materials such as titanium and nickel alloys. Its innovative construction ensures both safety and performance in demanding manufacturing environments.
Key Features #
- Firm Tool Clamping: The chuck firmly secures the tool, making it ideal for operations involving difficult-to-cut materials.

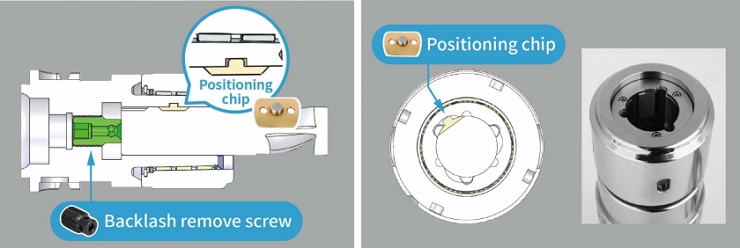

- Patented Positioning Chip & Backlash Remove Screw: These features work together to prevent tool slippage and pullout during the machining process, enhancing operational safety and precision.
- Compatibility: Suitable for use with standard Weldon tools (ISO3338-2, JIS B4005, DIN1835).
- Coolant Optimization: The SMG design incorporates three coolant grooves and is built to withstand coolant pressures up to 70 bar, which improves chip evacuation and extends tool life.
Product Variants and Specifications #

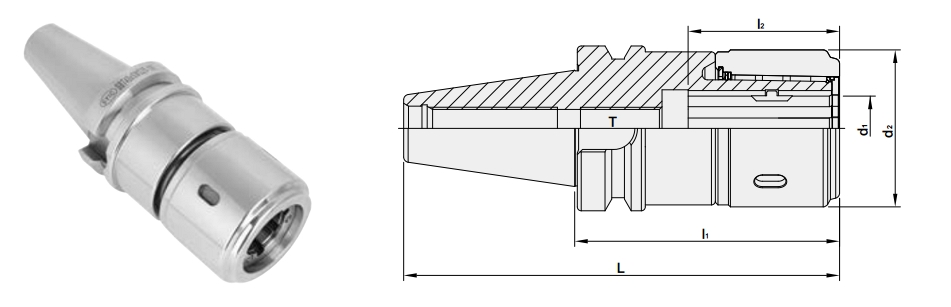

SBT/SMG Non-Pullout Milling Chuck #
| Model No. | Type | L (mm) | l1 (mm) | l2 (mm) | d1 (mm) | d2 (mm) | T | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 5026-626-025-100 | SBT40xSMG25-100 | 165.4 | 100 | 57.9 | 25 | 60 | M16x1.5P | 2.40 |
| 5026-626-032-095 | SBT40xSMG32-95 | 160.4 | 95 | 71.3 | 32 | 71 | M16x1.5P | 2.70 |
| 5026-626-032-105 | SBT40xSMG32-105 | 170.4 | 105 | 71.3 | 32 | 71 | M16x1.5P | 2.70 |
| 5026-626-032-135 | SBT40xSMG32-135 | 200.4 | 135 | 71.3 | 32 | 71 | M16x1.5P | 3.00 |
| 5027-626-025-100 | SBT50xSMG25-100 | 201.8 | 100 | 57.9 | 25 | 60 | M16x1.5P | 4.80 |
| 5027-626-025-130 | SBT50xSMG25-130 | 231.8 | 130 | 57.9 | 25 | 60 | M16x1.5P | 5.70 |
| 5027-626-032-105 | SBT50xSMG32-105 | 206.8 | 105 | 71.3 | 32 | 71 | M16x1.5P | 5.00 |
| 5027-626-032-135 | SBT50xSMG32-135 | 236.8 | 135 | 71.3 | 32 | 71 | M16x1.5P | 5.20 |
| 5027-626-032-165 | SBT50xSMG32-165 | 266.8 | 165 | 71.3 | 32 | 71 | M16x1.5P | 6.70 |

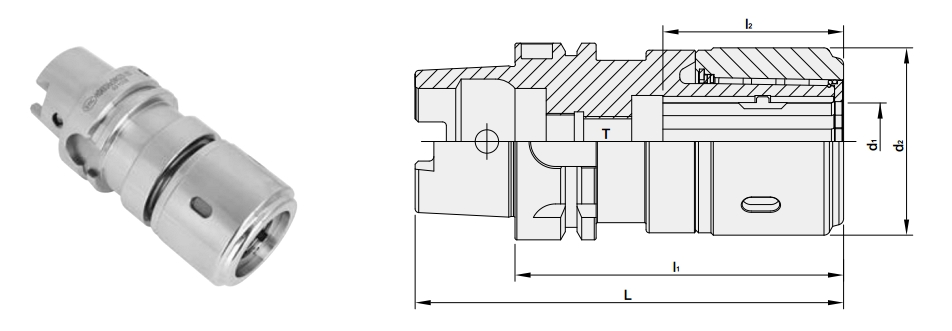

HSK/SMG Non-Pullout Milling Chuck #
| Model No. | Type | L (mm) | l1 (mm) | l2 (mm) | d1 (mm) | d2 (mm) | T | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 5073-626-025-105 | HSK63AxSMG25-105 | 137 | 105 | 57.9 | 25 | 60 | M16x1.5P | 1.85 |
| 5073-626-032-120 | HSK63AxSMG32-120 | 152 | 120 | 71.3 | 32 | 71 | M16x1.5P | 1.80 |
| 5075-626-025-115 | HSK100AxSMG25-115 | 165 | 115 | 57.9 | 25 | 60 | M16x1.5P | 3.30 |
| 5075-626-032-120 | HSK100AxSMG32-120 | 170 | 120 | 71.3 | 32 | 71 | M16x1.5P | 3.40 |

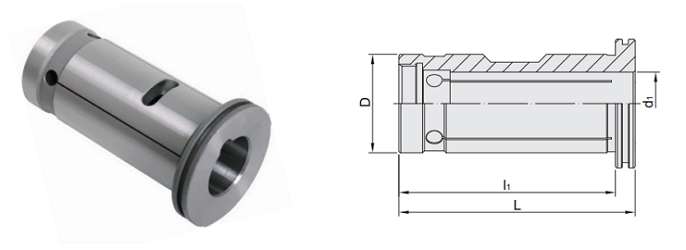

SMG Non-Pullout Collet #
| Type | D (mm) | d2 (mm) | L (mm) | l1 (mm) |
|---|---|---|---|---|
| SMG25 | 25 | 32.7 | 60 | 55 |
| SMG32 | 32 | 42.7 | 64.6 | 59.6 |
Collet Model Numbers and Sizes:
| Model No. | Size (mm) | Model No. | Size (mm) |
|---|---|---|---|
| 5253-626-025-012 | 12 | 5253-626-032-012 | 12 |
| 5253-626-025-016 | 16 | 5253-626-032-016 | 16 |
| 5253-626-025-020 | 20 | 5253-626-032-020 | 20 |
| 5253-626-032-025 | 25 |
Accessories #
Backlash Remove Screw #
| Model No. | Type |
|---|---|
| 5296-46-025-08-00 | M16x1.5P-25 |
Positioning Chip #
| Model No. | Type |
|---|---|
| 5296-46-025-07-00 | EM-25 |
| 5296-46-032-07-00 | EM-32 |
Technical Information #
For more detailed technical information, refer to the SMG Non-Pullout Milling Chuck PDF.
Application and Demonstration #
A video demonstration is available to showcase the application and machining capabilities of the SMG Non-Pullout Milling Chuck.
For further details, product support, or to explore more tool holding solutions, visit the SYIC website.
